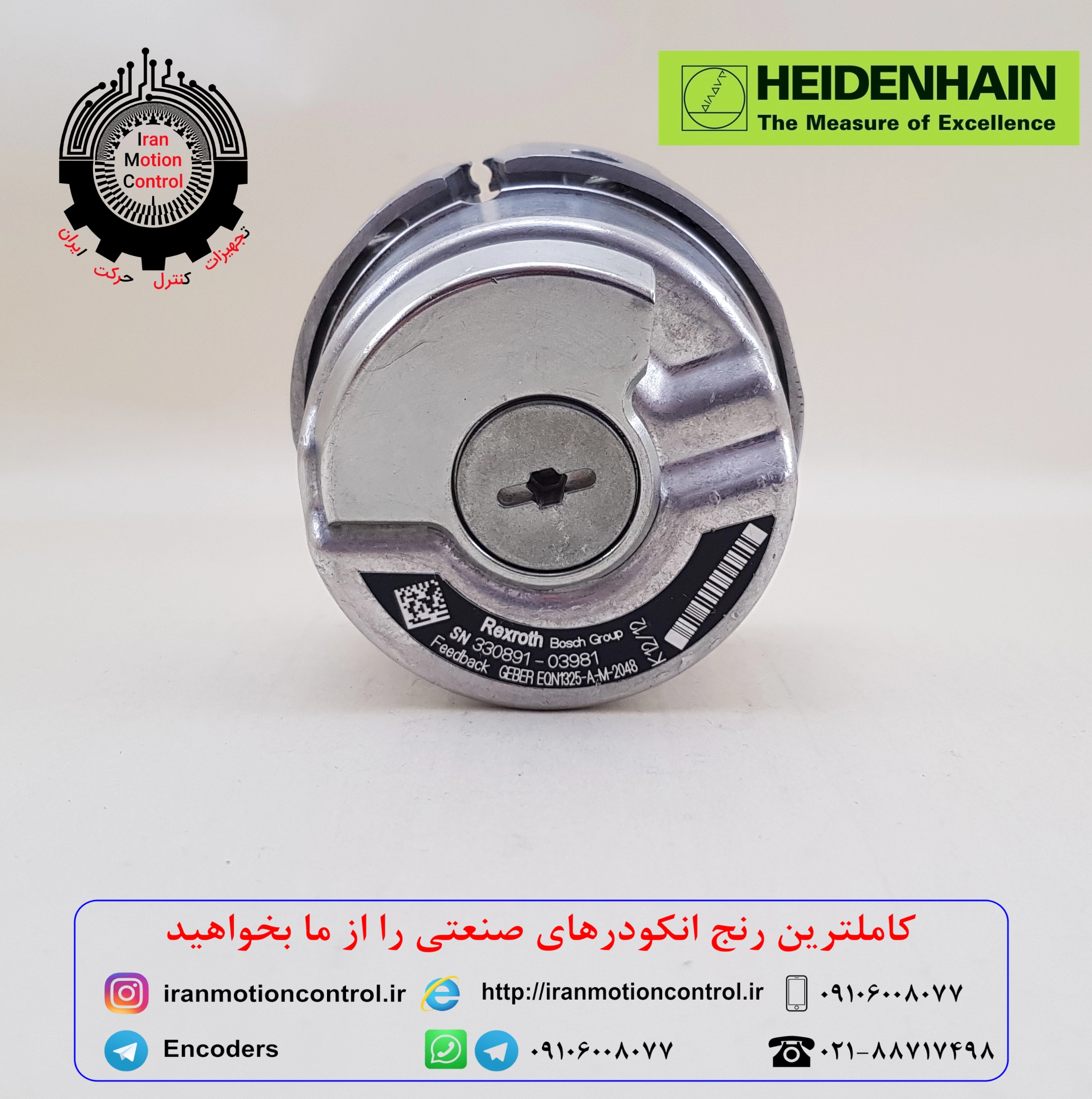

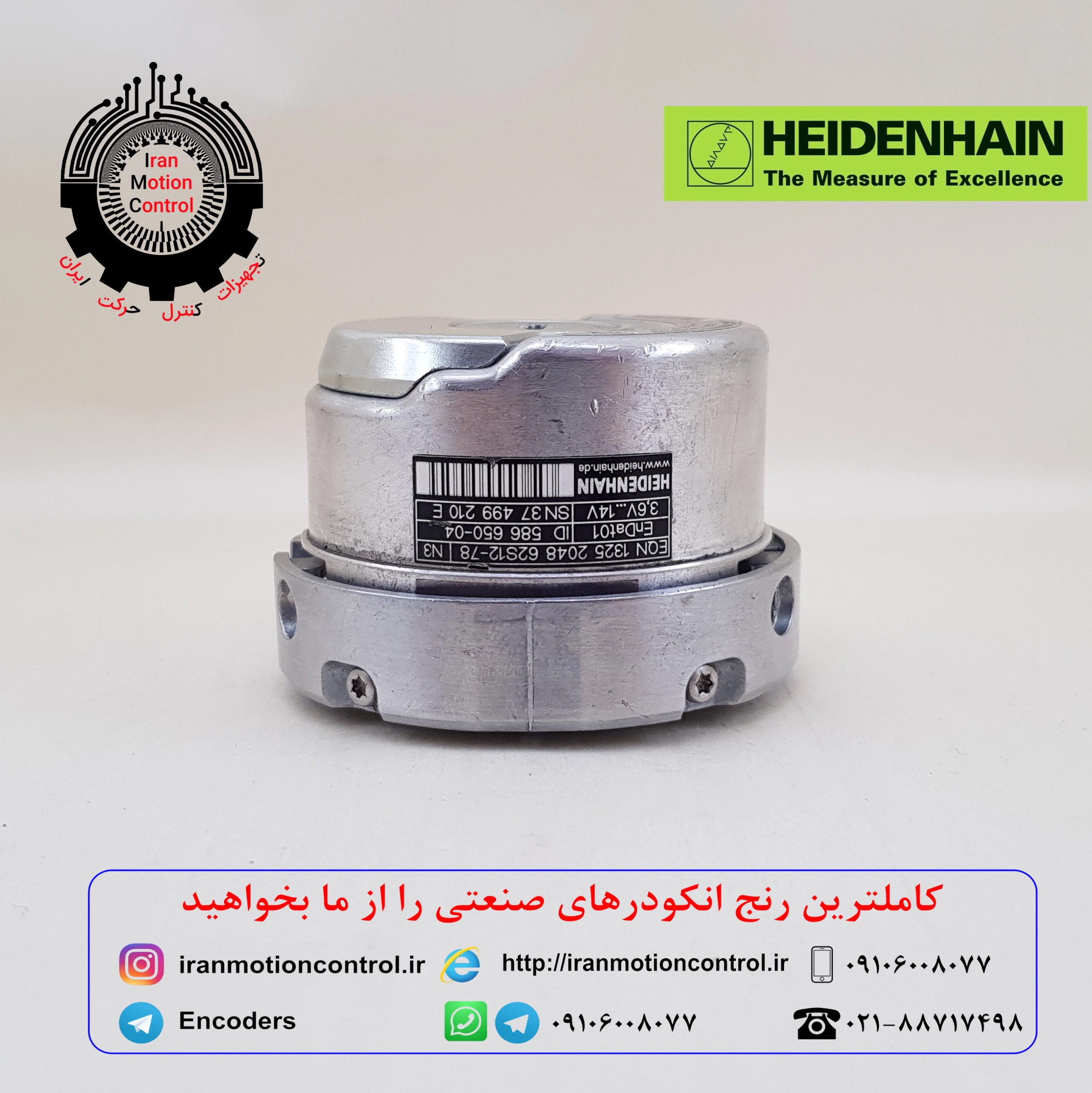

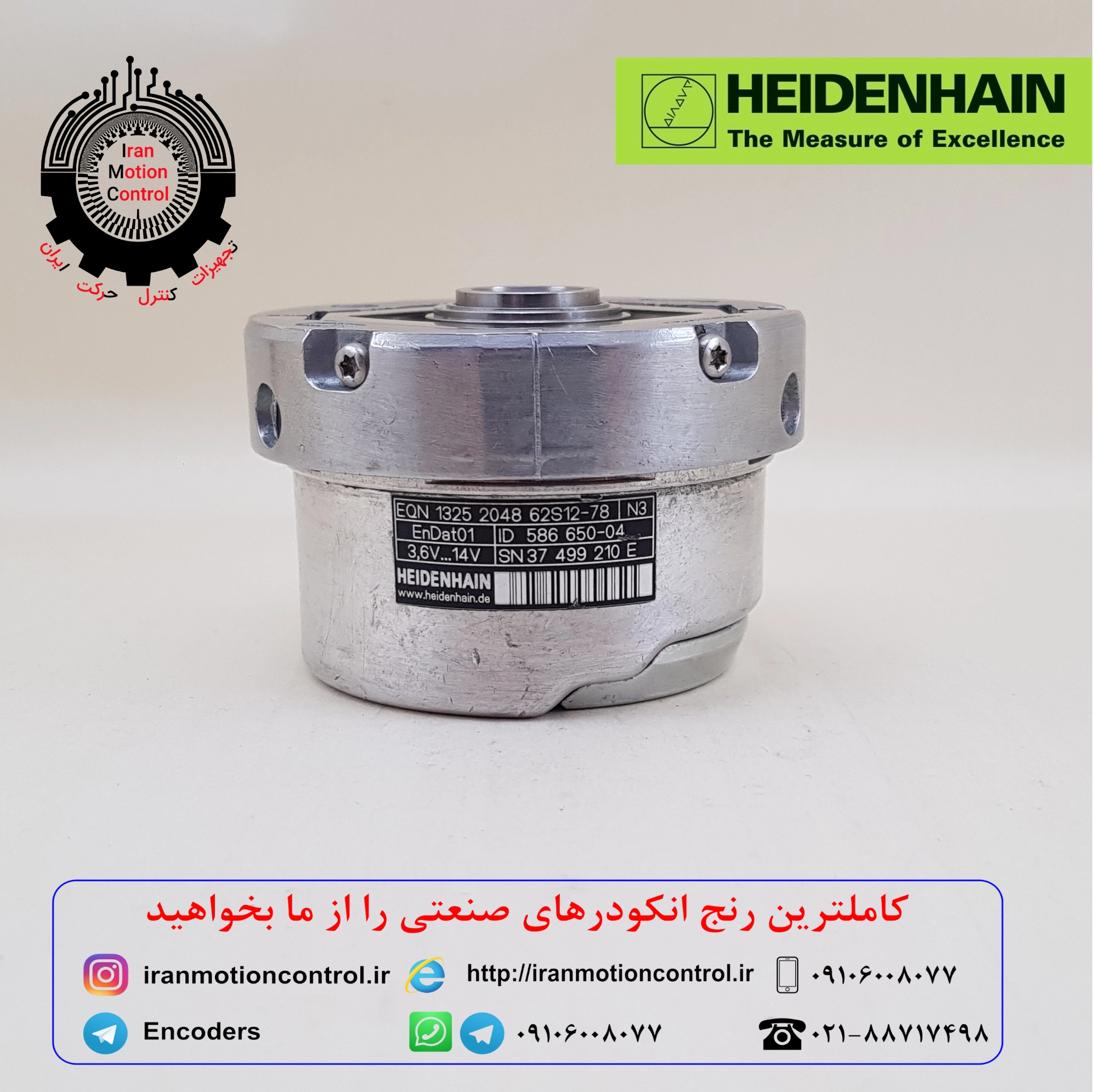

Encoder EQN 1325 (EQN 1325 2048 62S12-78), manufactured by HEIDENHAIN in Germany, is recommended as one of the best options for various automation applications. In some instances, as indicated in the image, the name of the company Rexroth is also visible on the body, indicating its production for Rexroth motors.
Product Overview:
- Exceptional Accuracy (Resolution on Absolute): With a maximum resolution of 13 bits (equivalent to 8192, which in this model is 12 bits or 4096 pulses per revolution), it provides precise and reliable feedback.
- Versatility and Precision Flexibility: The EQN 1325 series offers a selectable range between 512 to 8192 pulses, providing flexibility to adapt to various needs.
- Advanced Interface: Equipped with the EnDat01 interface, enhancing communication and compatibility with a range of systems and CNCs.
- Incremental Signals: Using 1Vpp incremental signals, it ensures accurate feedback for speed and rotation control of the motor.
- Exceptional Shaft Design: The shaft with a 1:10 ratio and a length of 9.25 mm (also available in blind hollow shaft version) provides flexibility for different mechanical configurations.

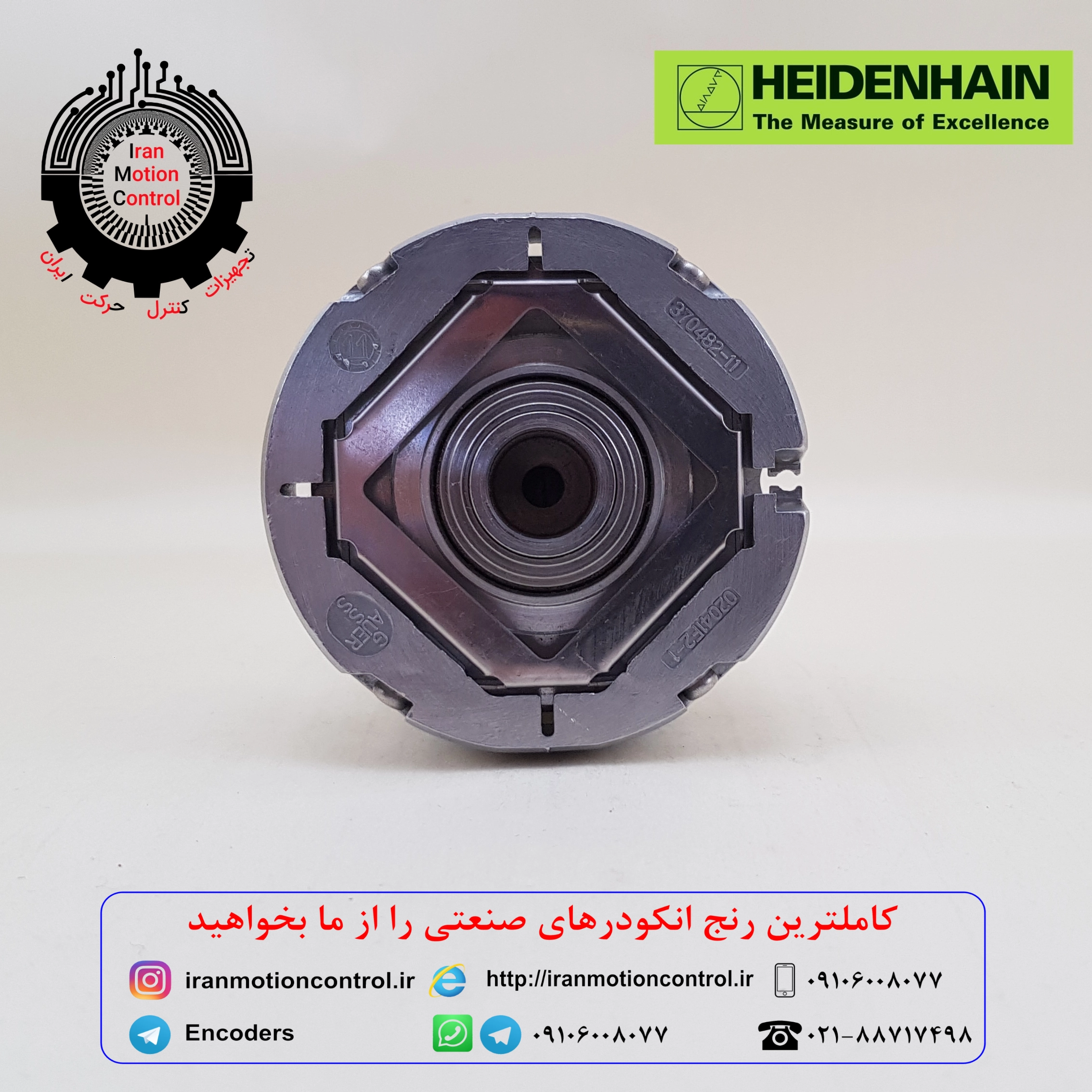

- Encoder Installation: This encoder has a stator coupling installation, ensuring stability and resistance in various working conditions.
- High-Temperature Tolerance: Capable of operating at temperatures up to 115 degrees Celsius, ensuring reliable performance even in challenging environments.
- Encoder Rotation Speed: With a maximum shaft speed of 12000 rpm, it is suitable for applications requiring a fast response.
- Voltage Supply Range: The encoder provides a voltage supply range between 3.6V to 14V in TTL logic.
- Compact and Standard Design: With a body diameter of approximately 64.8 mm, it combines powerful performance with an efficient spatial form.
- Easy Connection: Equipped with a 12-pin PCB connector through the encoder’s back screws, facilitating seamless integration with controllers, PLCs, and various CNCs. These simple and secure connections ensure effortless integration into your system.
- Protection Rating: With an IP40 rating, the encoder is protected against dust ingress, making it suitable for various industrial environments.
قائدی –
قربان سلام و روز خوش
شما انکودر هایدن هاین رو موجد دارید یا رکسروس؟
نویسنده سایت کنترل حرکت و تعیین موقعیت ایران –
جناب قائدی درود و روز به خیر
در واقع رکسروس شرکت سازنده موتور و درایو هست. سفارش تولید انکودر های خود را به هایدن هاین منتقل می کند و شرکت Heidenhain یه سری کد ها رو برای آن اختصاصی تولید میکند. کد پیش روی شما هم گویای همین مورد هست.
با تشکر از توجه شما
